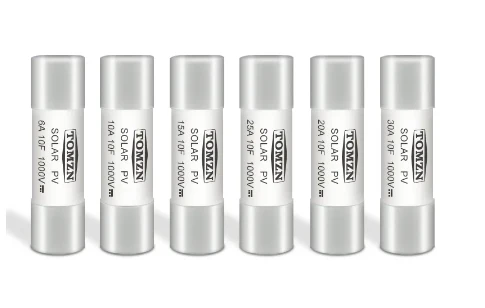

Solar DC 1000V PV Fuses

PV String Fuses for Solar Panels

• Package: 10x38mm
• Voltage: Rated at 1000VDC
• Fuse Ratings Available: 6A, 10A, 15A, 20A, 25A, 30A
• Break Capacity: 33kA DC
• Minimum Interrupting Rating: 1.3x In
• Time Constant: Under 1ms
• Standards: IEC 60269-6, EN 60947-3, DC-20B

Features:

• Specifically designed for the protection and isolation of photovoltaic strings.
• Capable of interrupting low overcurrents in faulted PV arrays.

Applications: Suitable for Solar Panels, Photovoltaic Systems, and DC Strings.

Recommendation: For any photovoltaic string rated up to 1000VDC, it's advised to use fuses on both positive and negative terminals.

Note: The listing is for a single fuse. A 2-pole fuse holder requires 2 fuses. If in need of a fuse holder, Click Here.
