Mounting box

Mounting box är en tillbehör från Autoterm — passar AUTOTERM Air 4D.

Beskrivning från Autoterm (engelska):

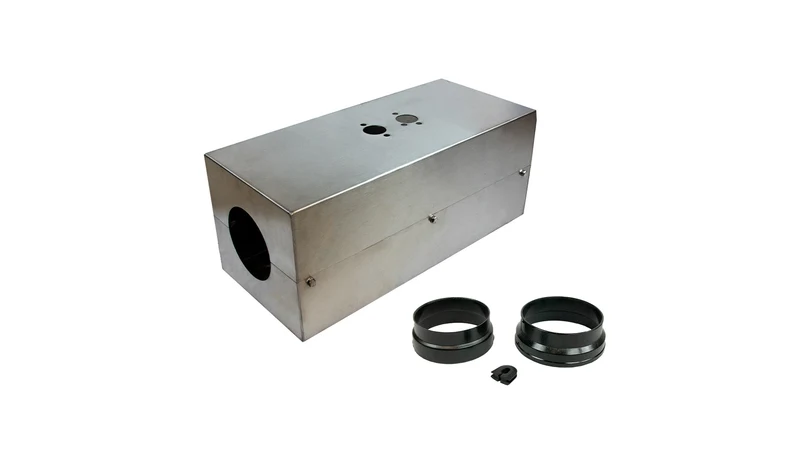

This stainless steel Mounting box is suitable for AUTOTERM Air 4D air heaters.

The mounting box ensures a safer installation of the heater unit. It is made out of stainless steel and can be installed under the floor of the vehicle.

This Mounting box is compatible with the following mounting brackets:

• Universal mounting bracket with pegs for Air 4D (assy.AT5-0025-A24)

Contains:

1 x Stainless steel mounting box (assy: AT5-0024-A24)

1 x Rubber fitting (assy: AT0048)

1 x Inlet adapter (assy: P5313)

1 x Outlet adapter (assy: P2423)

6 x M5 Bolts

6 x M5 Washers

Material: Stainless steel (AISI 316)

Dimensions: 406x179x169mm

** Please note that the heater's correct/allowed position & angle must be done according to the installation manual of the heaters.

Tekniska detaljer
Artikelnummer: AT5-0024-A24
För modell: AUTOTERM Air 4D
Vikt: 0.00 kg
