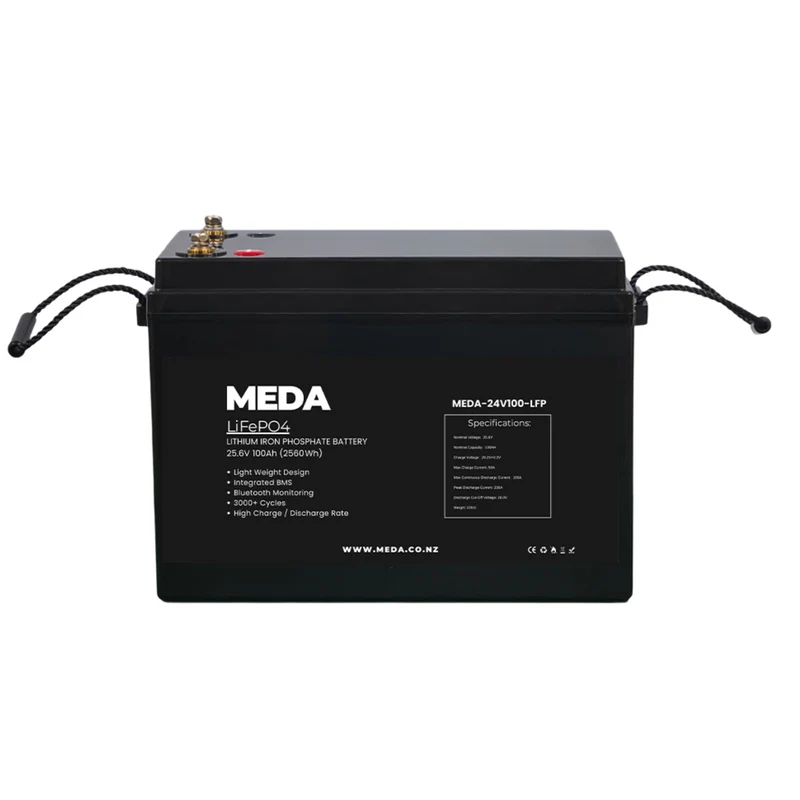

MEDA 24v 100ah Lithium Battery with Bluetooth

Introducing the MEDA-24V100-LFP Lithium Battery: 24V, 100AH

Perfect for Motorhomes, Caravans, RVs, and Marine applications. An absolute powerhouse for your energy needs.

Why Choose MEDA-24V100-LFP?

Quality You Can Trust: Made with the highest-grade Lithium Gotion cells, owned by Volkswagen and utilized in all their electric vehicles.

Inbuilt BMS: Comes with a JBD brand Battery Management System. Plus, Bluetooth capabilities for wireless monitoring of your battery's status and health.

Local 7 Year Warranty: Unlike many other LiFePO4 batteries in the market, we back our product with a local warranty for peace of mind.

Higher Discharge and Charge Rates: Designed with superior discharge and charge capabilities compared to many other batteries on the market, ensuring top-notch performance.

Features and Benefits:

• Lightweight Design
• Integrated BMS
• Bluetooth Monitoring
• Long Life: Over 3,000 cycles
• Versatile: Supports both series and parallel connections

Dimensions: W380mm (including handles) x D190mm x H260mm (including terminals)

Specifications:

• Model: 24V100AH
• Nominal Voltage: 25.6V
• Nominal Capacity: 100Ah
• Energy: 2560Wh
• Cycle Life: >3000 Cycles @ 80% DOD, at 25°C
• Self Discharge: ≤3% per month at 25°C
• Charge Voltage: 29.2±0.2V
• Standard Charge Current: 20A
• Max Charge Current: 100A
• Max Continuous Discharge: 100A
• Peak Discharge: 200A (<3S)
• Discharge Cut-off Voltage: 20.0V
• Charge Temperature: 0°C to 45°C (32°F to 113°F) @ 60±25% Relative Humidity
• Discharge Temperature: -20°C to 60°C (-4°F to 140°F) @ 60±25% Relative Humidity
• Storage Temperature: 15°C ~ 35°C (monthly charge and discharge recommended)
• Dimensions: 380mm x 190mm x 260mm
• Weight: Approx. 22kg
• Terminal: M8
• Connections: Support for up to 4pcs in Parallel or 2pcs in Series. (Note: Series and parallel connections are not recommended simultaneously.)
• Warranty: 7 years local warranty

Not sure which battery fits your setup? Read the NZ Lithium Battery Buying Guide - 12V, 24V and 48V explained in plain English.
