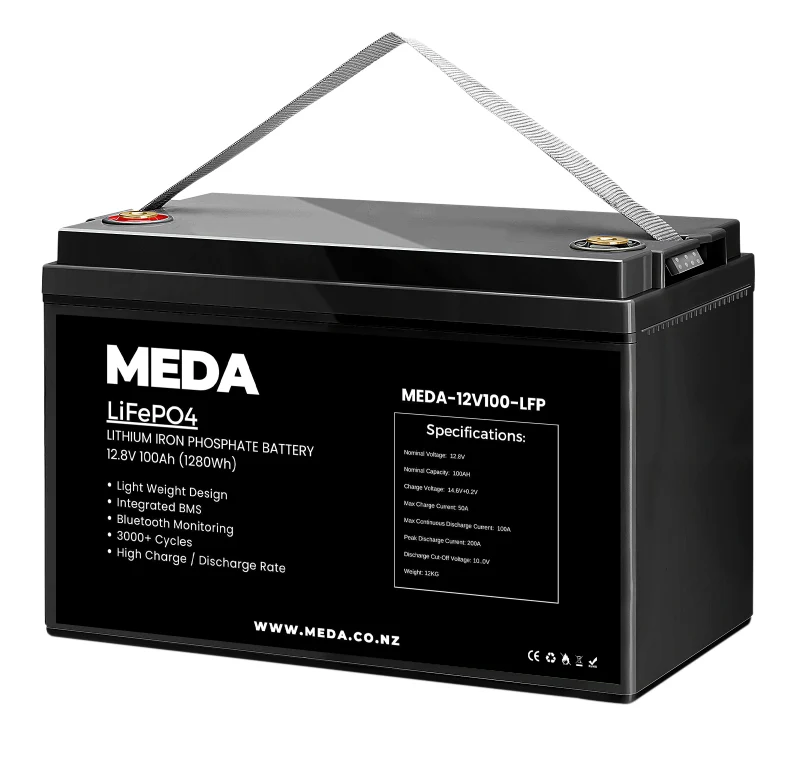

MEDA 12v 100ah Lithium Battery with Bluetooth

Premium Power for Motorhomes, Caravans, RVs & Marine Applications

The MEDA-12V100-LFP is the ideal lithium battery solution for mobile and off-grid power systems. Whether you're travelling in a motorhome, cruising on a boat, or living tiny, this lightweight, high-performance battery delivers reliable, long-lasting energy with Bluetooth-enabled smart monitoring and a 7-year local warranty for peace of mind.

🔋 Why Choose the MEDA-12V100-LFP?

• High-Quality Gotion Cells: Manufactured using top-tier lithium cells owned by Volkswagen — the same used in their EV lineup
• Integrated JBD BMS: Advanced Battery Management System with Bluetooth monitoring via app
• NZ-Based 7-Year Warranty: Local support, no overseas warranty headaches
• High Discharge Performance: 100A continuous, 200A peak for short bursts
• Flexible Setup: Supports up to 4 units in series or parallel (not both at once)

⚙️ Key Features

• Lightweight & compact — only ~12kg
• Over 3,000 cycles @ 80% DoD
• Bluetooth monitoring via JBD App
• Integrated smart BMS with protection features
• Supports series (up to 48V) or parallel connections (up to 400Ah)

📐 Dimensions & Physical Specs

• Size: 337mm (W) x 183mm (D) x 215mm (H)
• Weight: Approx. 12kg
• Terminal: M8

📊 Technical Specifications

• Model: 12V100Ah
• Nominal Voltage: 12.8V
• Nominal Capacity: 100Ah
• Energy: 1280Wh
• Cycle Life: >3000 cycles @ 80% DOD, 25°C
• Self Discharge: ≤3% per month @ 25°C
• Charge Voltage: 14.6V ± 0.2V
• Standard Charge Current: 20A
• Max Charge Current: 50A
• Max Continuous Discharge: 100A
• Peak Discharge: 200A (<3s)
• Discharge Cut-off Voltage: 10.0V
• Charge Temp: 0°C to 45°C @ 60±25% RH
• Discharge Temp: -20°C to 60°C @ 60±25% RH
• Storage Temp: 15°C to 35°C (monthly charge/discharge recommended)

📦 Series & Parallel Connection Notes

Supports up to 4 batteries in either series or parallel — not both simultaneously.

✅ Warranty

Backed by a 7-Year Local Warranty – Enjoy the confidence of NZ-based support and service.

Note: For installation into 12V/24V/48V systems, MEDA recommends consultation with an installer or licensed electrician.

Not sure which battery fits your setup? Read the NZ Lithium Battery Buying Guide - 12V, 24V and 48V explained in plain English.
