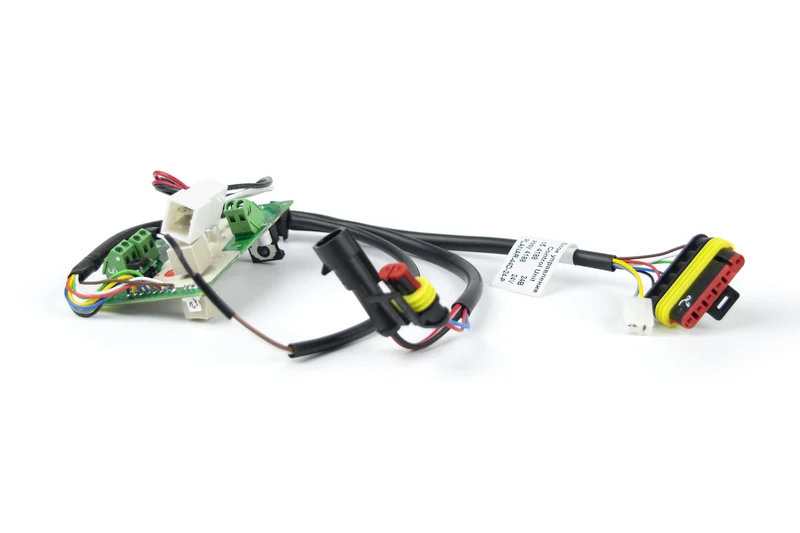

High altitude control unit

High altitude control unit är en reservdel från Autoterm — passar AUTOTERM Air 4D.

Beskrivning från Autoterm (engelska):

This High altitude control unit is suitable for air heaters AUTOTERM Air 4D with a specific serial number.

Suitable for heaters with the following serial numbers:

• 4186xxxxxxx
• 4761xxxxxxx

This 24V control unit is compatible with AUTOTERM Air 4D heaters equipped with the following air pumps (assy numbers):

• 1881

Heater equipped with this control unit can work at altitude up to 2500 meters above sea level (MASL).

Interchangeable control units.

Heater	serial number	control unit	Glow plug	HA control unit	HA Glow plug
4D12	4142….	AT4144	AT3333	AT4002	AT3333
4D24	4137….	AT4139	AT3333	AT4188	AT3333
4D12	3046….	AT3048	AT2288	AT4002	AT3333
4D24	3031….	AT3033	AT2253	AT4188	AT3333

In order to change the control unit for 44D with control units AT3048 and AT3033, you have to change the Glow plug as well.

Tekniska detaljer
Artikelnummer: 4188
Spänning: 24V
För modell: AUTOTERM Air 4D
Vikt: 0.14 kg
