Domestic water kit

Domestic water kit är en tillbehör från Autoterm — passar AUTOTERM Air 9D.

Beskrivning från Autoterm (engelska):

A domestic water heating kit for installing with:

All AUTOTERM 7-liter, 9-liter, and 12-liter combiBOIL models;

5 kW passive plate heat exchanger (Assy: FR064);

10 kW passive plate heat exchanger (Assy: FR007).

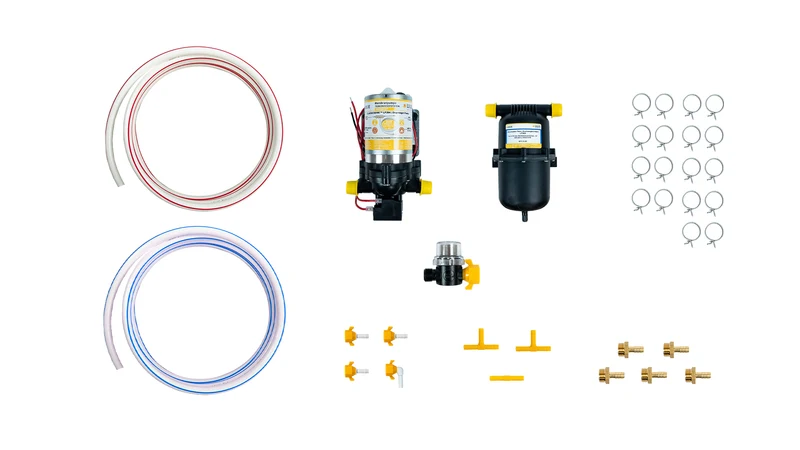

It includes:

Cold water hose - Assy: AT7-0008-CB (4m)

Hot water hose - Assy: AT7-0008-CB (4m)

Pressure pump 1,4Bar - Assy: AT7-0010-CB (1pce)

Pressure tank - Assy: AT7-0012-CB (1pce)

Inlet filter - Assy: AT7-0013-CB (1pce)

1/2'' to 10mm connectors - Assy: AT7-0011-CB (3pcs)

1/2'' to 10mm connector with 90° bend (1pce)

Hose T-pieces 10x10x10 - Assy: AT7-0014-CB (2pcs)

Hose connector 10mm - Assy: AT7-0015-CB (1pce)

Spring clamps 15,7-16.5mm - Assy: AT7-0016-CB (18pcs)

Male brass hose adapters 1/2' to 10mm - Assy: AT7-0017-CB (5pcs)

Warning! This kit doesn't include the combiBOIL, 5kW or 10kW plate heat exchangers, water tank, thermostatic mixing valve, and the domestic water system itself (see in product photos).

Manufactured by Lilie GmbH & Co. KG,  Germany

Tekniska detaljer
Artikelnummer: AT7-0018-CB
För modell: AUTOTERM Air 9D
Vikt: 0.00 kg
