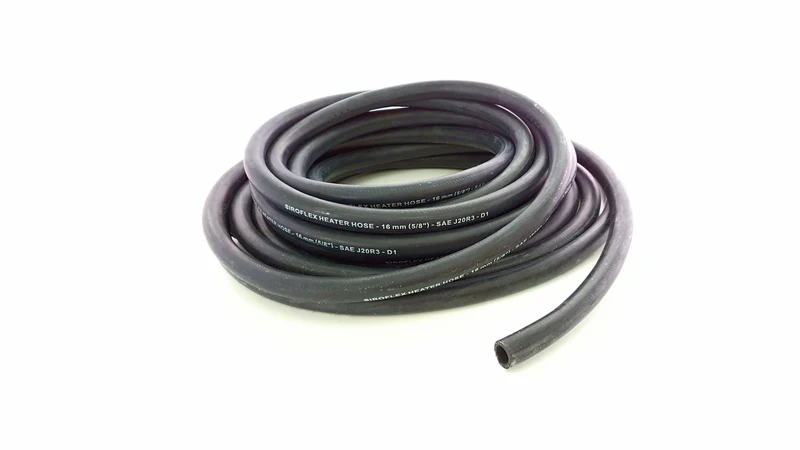

Coolant hose

Coolant hose är en tillbehör från Autoterm.

Beskrivning från Autoterm (engelska):

The coolant hose is suitable for passive & active fan liquid heat exchangers.

Suitable for AUTOTERM Flow 5 liquid heaters with the coolant hose connector from Ø 18 mm to Ø 16 mm.

Suitable with following connectors & valve:

• 90° coolant hose connector - assy.FR031
  Diameter: Ø 16 mm
• Straight coolant hose connector - assy.FR028
  Diameter: Ø 18 mm / Ø 16 mm.
• Straight coolant hose connector - assy.FR030
  Diameter: Ø 16 mm
• Straight coolant hose connector - assy.FR034
  Diameter: Ø 20 mm / Ø 16 mm
• Straight hose connection - assy.FR020
  Diameter: Ø 16 mm
• T-shaped coolant hose connector - assy.FR032
  Diameter: Ø 16 mm
• T-shaped metal pipe connector - FR021
  Diameter: Ø 20x16x20 mm
• Bleeding valve - FR022
  Diameter: Ø 16 mm
• Plastic electrovalve - FR019
  Diameter: Ø 16 mm / Voltage: 12V

*Price per 1 meter

ID: 16mm

OD: 23 mm

Internal material: black EPDM

Internal structure: textile

External material: black EPDM

Standard: SAE J20R3-D1

Operation pressure: 6 bar

Operation temperature (Min/Max): -35 C / +120 C

Tekniska detaljer
Artikelnummer: FR025
Vikt: 0.32 kg
